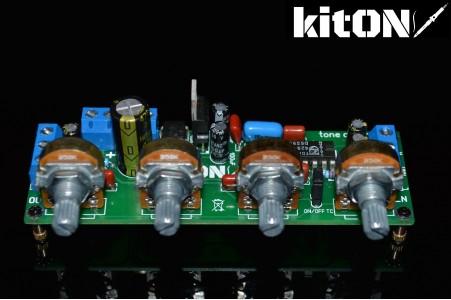

The TDA1524A chip is a two-channel (stereo) electronic volume, balance and timbre control for bass and treble.
The timbre unit has frequency compensation (loudnes), which equalizes the low and high frequencies by ear at low volume levels. Frequency compensation is activated by the "ON / OFF TC" jumper. To use frequency compensation continuously, you must remove the jumper from the board.
Supply voltage DC 12 ... 30V / AC 10 ... 25V
| Measurements | |
| Supply voltage bipolar | 18V |
| Frequency response (from 40 Hz to 15 kHz), dB | +0.13, -0.11 |
| Noise level, dB (A) | -92,1 |
| Dynamic range, dB (A) | 92,1 |
| THD, % | 0,2390 |
| THD + Noise, dB (A) | -50,1 |
| IMD + Noise, % | 0,1850 |
| Stereo crosstalk, dB | -82,7 |
| IMD at 10 kHz, % | 0,2460 |
| Measurement Page |
|
| General characteristics | |
| Built-in protection | No |
| Chip | TDA1524 |
| Gain | 21 |
| Module size LxWxH, mm | 33X100X25 |
| Number of channels | stereo |
| Power | Line level |
| Supply voltage maximum (constant) DC | 30V |
| Supply voltage minimum (constant) DC | 12V |
| Supply voltage, maximum (variable) AC | 25V |
| Supply voltage, minimum (variable) AC | 10V |
| Weight, kg | 0,053 |
