In addition to a high-quality microcircuit, only high-quality components are used in the amplifier.
The set includes racks with M2 bolts for installation in the housing, as well as mica gaskets, insulating washers and thermal grease for mounting on a radiator.
Supply voltage +/- 10V - +/- 28V
Power depends on voltage and current 15-25W
| Measurements | |
| Supply voltage bipolar | -25V...0...+25V |
| Load resistance | 4 Ohm |
| Power maximum, W | 34 |
| Testing power, W | 9 |
| Frequency response (from 40 Hz to 15 kHz), dB | +0.02, -0.08 |
| Noise level, dB (A) | -101,7 |
| Dynamic range, dB (A) | 101,7 |
| THD, % | 0,0170 |
| THD + Noise, dB (A) | -73,2 |
| IMD + Noise, % | 0,0200 |
| Stereo crosstalk, dB | -73,5 |
| IMD at 10 kHz, % | 0,0230 |
| Measurement Page |
|
| General characteristics | |
| Amplifier class | AB |
| Built-in protection | Yes |
| Chip | TDA2050 |
| Gain | 33 |
| Maximum supply voltage (bipolar / constant) DC | 28V |
| Minimum supply voltage (bipolar / constant) DC | 10V |
| Module size LxWxH, mm | 33x100x25 |
| Number of channels | stereo |
| Weight, kg | 0,054 |

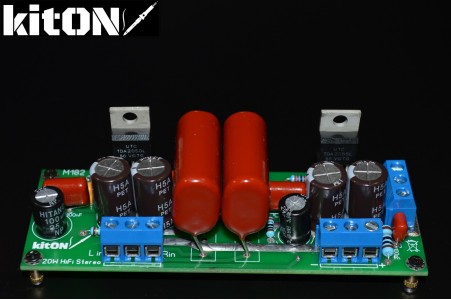

TDA2050 original from UTC, stereo amplifier
- Brands kitON
- Product Code: M25U-01
- Availability: In Stock
-
710.00грн.
