In addition to the original microcircuit, the amplifier uses only high-quality components.
The set includes racks with M2 bolts for installation in the housing, as well as mica gaskets, insulating washers and thermal grease for mounting on a radiator.
Supply voltage +/- 10V - +/- 28V
Power depends on voltage and current 15-25W
| Measurements | |
| Supply voltage bipolar | -25V...0...+25V |
| Load resistance | 4 Ohm |
| Power maximum, W | 34 |
| Testing power, W | 9 |
| Frequency response (from 40 Hz to 15 kHz), dB | +0.05, -0.02 |
| Noise level, dB (A) | -102,4 |
| Dynamic range, dB (A) | 102,4 |
| THD, % | 0,0150 |
| THD + Noise, dB (A) | -73,9 |
| IMD + Noise, % | 0,0140 |
| Stereo crosstalk, dB | -74,7 |
| IMD at 10 kHz, % | 0,0190 |
| Measurement Page |
|
| General characteristics | |
| Amplifier class | AB |
| Built-in protection | Yes |
| Chip | TDA2050 |
| Gain | 33 |
| Maximum supply voltage (bipolar / constant) DC | 28V |
| Minimum supply voltage (bipolar / constant) DC | 10V |
| Module size LxWxH, mm | 33x100x25 |
| Number of channels | stereo |
| Weight, kg | 0,054 |

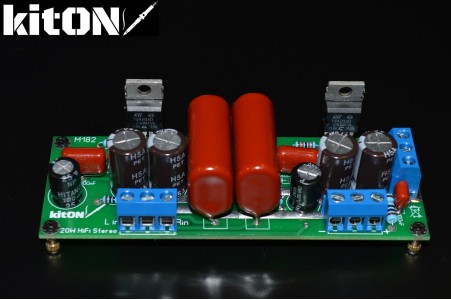

TDA2050 original from STM, stereo amplifier
- Brands kitON
- Product Code: M25S-01
- Availability: In Stock
-
1030.00грн.
