46W-220V / 2x11Vx1A, 0-12V-24V x 1A, winding screen, surface treatment, washer, 80x45mm
A low-power transformer with two independent windings 11B and two windings 12V with a connection at the midpoint and amperage on all windings 1A. This transformer is perfect for powering preamplifiers, tone blocks, standby power supplies and low-power power supplies. The presence of separate windings allows you to power various consumers with galvanic isolation, as well as create a separate two-polar power supply unit with full galvanic isolation, which in turn significantly reduces the amount of spurious interference, noise and background.
Also, the transformer can be used to create one and two polar power supplies of low-power amplifiers.
Power 46W
Primary Voltage AC 220V
Secondary winding current 1,2 1A
Secondary winding current 3+4 1A
Secondary winding voltage 1,2 AC 11V
Secondary winding voltage 3+4 AC 12V
Size 80х45mm

Write a review

Note: HTML is not translated!
    Bad           Good
Captcha

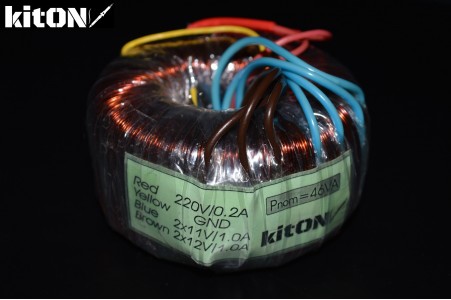

Toroidal transformer 46W

  • Brands kitON
  • Product Code: TR004601-01
  • Availability: In Stock
  • 590.00грн.
