LM1876 microcircuits are supplied in two types of packages: insulated and non-insulated. In case of ordering a non-insulated housing, the set includes mica, insulating gasket
Output protection against short-circuit to ground and to power rails.
Overcurrent protection 3.5A
Overheat protection
| Measurements | |
| Supply voltage bipolar | -28V...0...+28V |
| Load resistance | 4 Ohm |
| Power maximum, W | 20 |
| Testing power, W | 8 |
| Frequency response (from 40 Hz to 15 kHz), dB | -0.02, -0.10 |
| Noise level, dB (A) | -107,3 |
| Dynamic range, dB (A) | 107,3 |
| THD, % | 0,0410 |
| THD + Noise, dB (A) | -65,6 |
| IMD + Noise, % | 0,0650 |
| Stereo crosstalk, dB | -75,1 |
| IMD at 10 kHz, % | 0,0860 |
| Measurement Page |
|
| General characteristics | |
| Amplifier class | AB |
| Built-in protection | Yes |
| Chip | LM1876 |
| Gain | 23 |
| Maximum supply voltage (bipolar / constant) DC | 28V |
| Minimum supply voltage (bipolar / constant) DC | 10V |

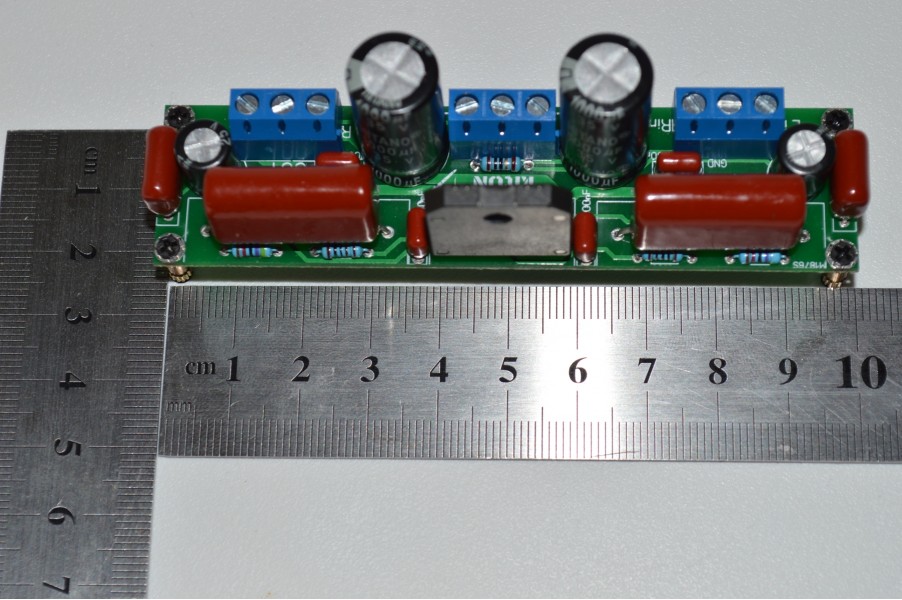

| Module size LxWxH, mm | 25x100x28 |
| Number of channels | stereo |
| Weight, kg | 0,043 |

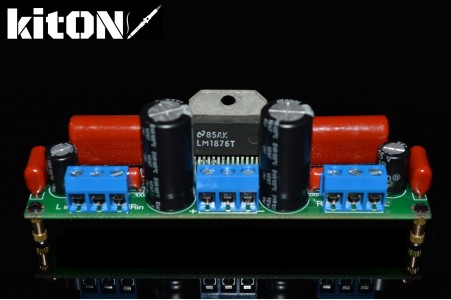

LM1876 original, stereo amplifier
- Brands kitON
- Product Code: M1876S-01
- Availability: In Stock
-
410.00грн.
