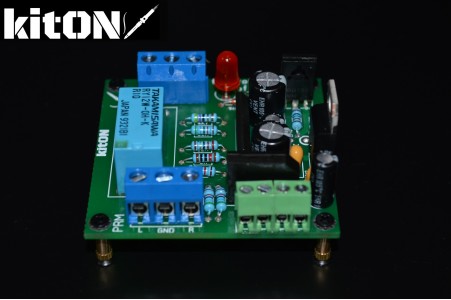

The second generation of the headphone protection module. It differs from the first by the presence of a stabilized power supply on the board, which significantly expands the connectivity of this device. Now you don't need to look for a suitable, constant voltage in the existing amplifier circuit or build another power supply for the protection module. It is enough to connect this device to the secondary winding of a transformer with alternating voltage from 10 to 25V or directly to the power supply of the amplifier, if the constant voltage corresponds to 12 to 35V!

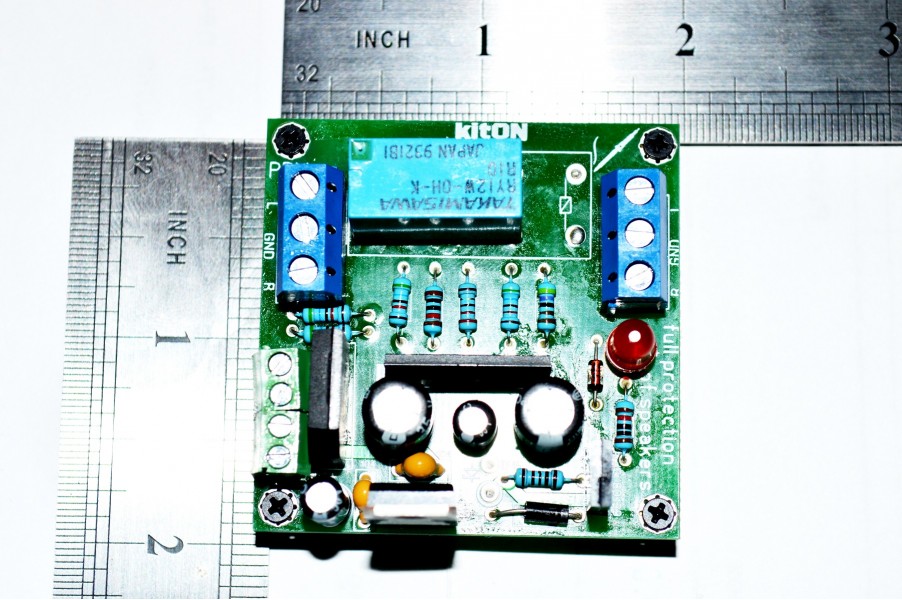

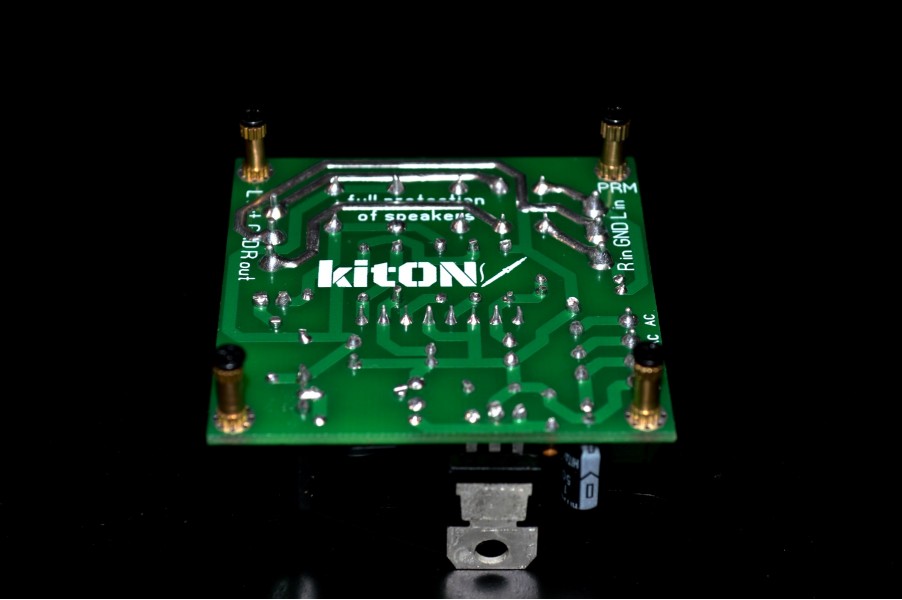

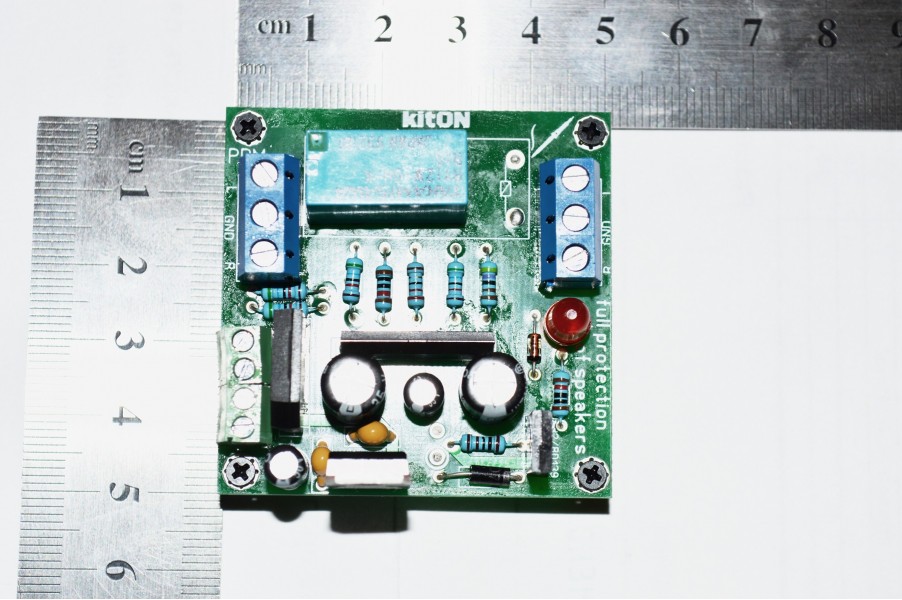

Stereo amplifier headphone protection unit
The module is built on a specialized chip and provides protection for headphones in the following cases:
1. Transients when the amplifier is turned on
2. Failure of the amplifier and as a consequence of the appearance of DC voltage at its failure.

The principle of operation of the device is based on opening of a circuit between the amplifier and earphones by means of the relay. When the power is turned on, the relay contacts are open and the transients, accompanied by clicks and claps, take place without the participation of headphones. After 2-3 seconds, the relay turns on the circuit between the amplifier and the headphones. In the event of a failure of the amplifier, and as a consequence, the occurrence of dangerous for the headphones DC voltage relay disconnects this circuit. The device uses a high-quality original "OMRON" relay "
The module has an LED, the glow of which signals the connection of headphones to the audio amplifier.
Supply voltage DC 12 ... 35V / AC 10 ... 25V
